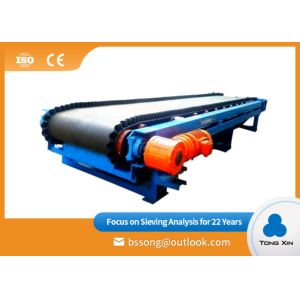

Tongxin Manufacturer Direct Sale Weigh Belt Feeder Automatic Feeding Grain
Introduction
The belt vibrating feeder is also known as vibrating feeding machine, and is used for feeding the lump, granular and powdery materials from the material storing warehouse or hopper into the material receiving equipment in a uniform and continuous manner or by certain amount during the production process.
In the crushing production line, this product can feed the materials in a continuous and uniform manner for the crushing machine, and screen the materials primarily.
Features
1. Weighing sensor applied bi-layer seal, long operating life, high reliable;
2. Speed signal applied gear sensor, accurate and reliable speed signal, and high anti-interference;
3. Annular skirt side can prevent spreading;
4. Unique technology avoiding misalignment keeps belt running regularly;
5. Impeccable internal and external sweeper keep belt clean;
6. Alternative open-loop control and closed-loop control can achieve single loop digital control to the system;
7. Alternative instrument interface: RS232 interface, RS485 interface and printer interface.
Application
Vibration Feeder is a kind of linear direction feeding machine. It has features of smooth vibrating, reliable operation, long service life and suitable feeding. It is widely used in mining, building, silicate and chemical industries for crushing and screening.
Working Principle
The electronics integrate output signals from the load cell and speed sensor to arrive at a rate of material flow to calculates the "Mass Rate" and "Mass Total" passing over the conveyor.
Technical Parameters
| Max. Capacity | 5000t/h |
| Max. Rate Speed | 4m/s |
| Belt Width | 450-2400mm |
| Angle of Belt Inclining | Less than16 degree |
| Incentive Voltage | 10VDC(max. 15VDC) |
| Output Voltage | 2MV |
| Non-Linearity | 0.02% |
| Hysteresis Error | 0.02% |
| Repeatability Error | 0.01% |
| Max. Capacity of Sensor Overload | 1000% of rated capacity |
| Work Temperature | -40--85 degree |
Our Advantage
The product of Tongxin company can be sent to the Quality and Technical Supervision Bureau for mesh detection, if not in line with the national standards for you free return and replacement. The follow picture is our quality inspection report.
Our Service
1. We provide 12 months quality warranty;
2. We have professional engineer team ensure to provide the most professional equipment;
3. Professional engineers team can choose the right equipment for you;
4. We can provide thorough after-sales service to ensure the proper use of machine.
5. We can provide OEM customization.
If you want to get more information of product, please contact us!
