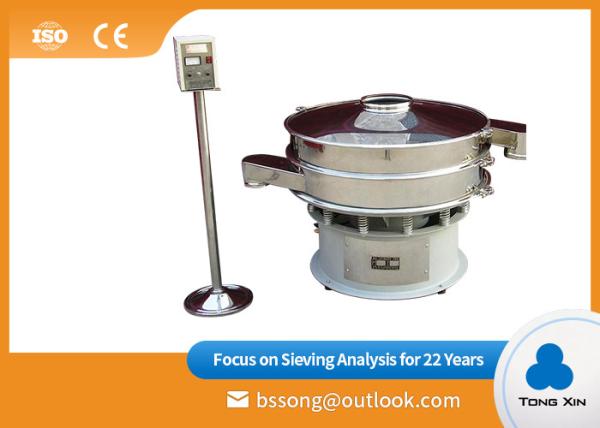

XZS-1000 All Stainless Steel 2um Fine Rotary Vibrating Screen Machine
Apply in Industry
| Food Industry | Sugar, salt, alkali, gourmet powder, starch, milk powder, yeast powder, pollen, food additive, bean milk, juice, etc. |
| Chemical Industry | Resin pigment, medicine, grease, paint, palette, etc. |
| Medicine Industry | Pills, tablets, capsules, granules. |
| Abrasive material and ceramic industry |
| Building Industry | Sand , cement, Pebble |
| Plastics Industry. |
| Organic Fertilizer Industry. |
| Mechanical Industry | Casting sand, powder metallurgy, electromagnetic material and metal powder, etc |
| Paper-making Industry | Coated slurry, exhaust liquid, paper making liquid and waste water reclamation, etc. |
Technical Parameters
| Model | 400 | 600 | 800 | 1000 | 1200 | 1500 | 1800 | 2000 |
| Material | Carbon steel, stainless steel |
| Screen Diameter | 330 | 560 | 730 | 900 | 1100 | 1400 | 1700 | 1886 |
| Sieving Area | 0.07 | 0.24 | 0.4183 | 0.6359 | 0.9499 | 1.5386 | 2.2687 | 2.7922 |
| Specification | 2—500Mesh |
| Layer | 1-3 | 1-5 | 1-5 | 1-5 | 1-5 | 1-5 | 1-3 | 1-3 |
| Power (kw) | Vibration Motor | 0.25 | 0.37 | 0.75 | 1.1 | 1.5 | 2.2 | 3.0 | 3.7 |
| General Motor | | 0.55 | 1.1 | 1.5 | 1.5 | 2.2 | 2.2 | 3.0
|
Introduction
Any particle, powder, mucus can be screened within a certain range. The minimum to 500 mesh sieve or 0.028mm, the minimum can be filtered to 5 microns. This machine filters by grade with one to five screen, simultaneously sorts or filters 2-6 level .
Accurate and efficient screening: completely closed structure, no powder flying, no leak liquid, no mesh plug, auto emissions, no deposit material in the machine, no dead ends of grid structure, increased screen usage area.
Working Principle
Our circular vibrating screen, as a piece of powdery material screening equipment, uses vertical vibration motor or special vibration exciter as its vibration source. The vibration motor and vibration exciter have an eccentric block at the both upper and lower sides.
The eccentric blocks can generate a three-dimensional movement in horizontal, vertical and inclined direction. By adjusting the phase angles of the upper and lower eccentric blocks, the material on the screen can change the movement locus, achieving suitable screening performance.
Function
Advantages
1. New grid structure, long service life of screen cloth, only 3-5min for screen replacement.
2. Small volume, less space occupation, easy to move,360 degree adjustment of discharge opening.
3. Fully enclosed structure, no flying dust, no liquid leakage, no blocking of mesh opening, screen can reach 500 meshes, and filter can reach 5 um.
4. Automatic discharge of materials, continuous operation.
Our Service
1. We provide 12 months quality warranty;
2. We have professional engineer team ensure to provide the most professional equipment;
3. Professional engineers team can choose the right equipment for you;
4. We can provide thorough after-sales service to ensure the proper use of machine.
5. We can provide OEM customization.
If you want to get more information of product, please contact us!
